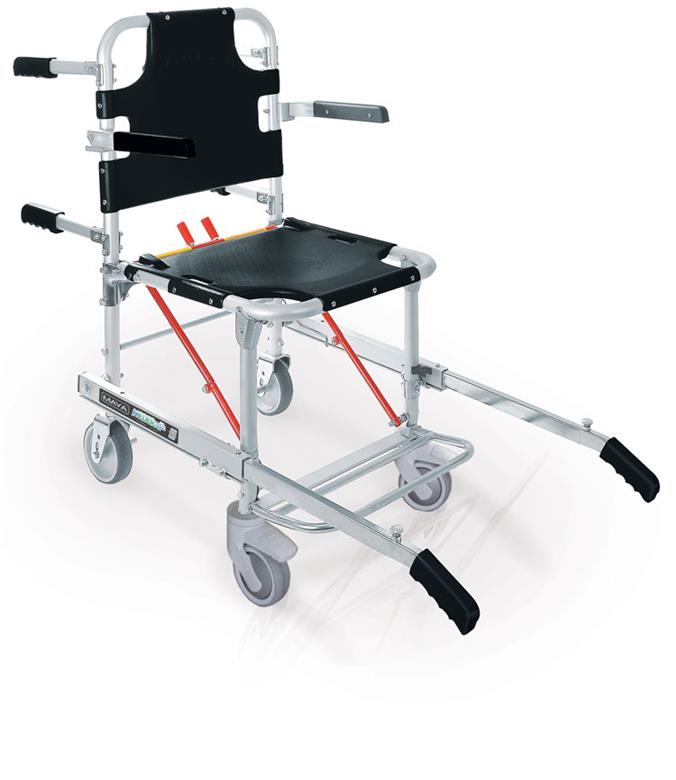

Maya 653Folding sedan chair with 4 wheels, footboards and arms |
 |
.jpg "Maya 653 closed")
.jpg "Maya 653 closed")
Description
Designed to help rescue personnel during rescue procedures. Made of anodized aluminium. Supplied with 4 wheels (2 rotating with brake Ø 100 mm and 2 fixed Ø 125 mm), easy and safe open/close system, 4 rear handles and 2 front extractable ones, back rest and seat made of thermoplastic material easy to clean and footrest. Supplied complete with yellow bag containing 3 belts (Art. 590/A).
Device certified according to the European harmonized standards UNI EN 1865 - UNI EN 1789
| 10G Certification |  |
|---|---|
| Foldable | |
| Footboards and arms | |
| Wheel type | 2 Rotating Wheels + 2 Small Fixed Wheels |
| Type | Sedan chair |
| Height (cm) | 90 |
| Width (cm) | 52 |
| Length (cm) | 75 |
| Max length (cm) | 131 |
| Folded thickness (cm) | 24 |
| Weight (kg) | 14 |
| Loading capacity (kg) | 170 |
| Folded height (cm) | 98 |
| Material | Anodized aluminium |
| Cardio | |
Download instruction sheet ENG
Click the button to download the file.
EN 1789 - EN 1865 Maya & Quick certification
Click the button to download the file.
