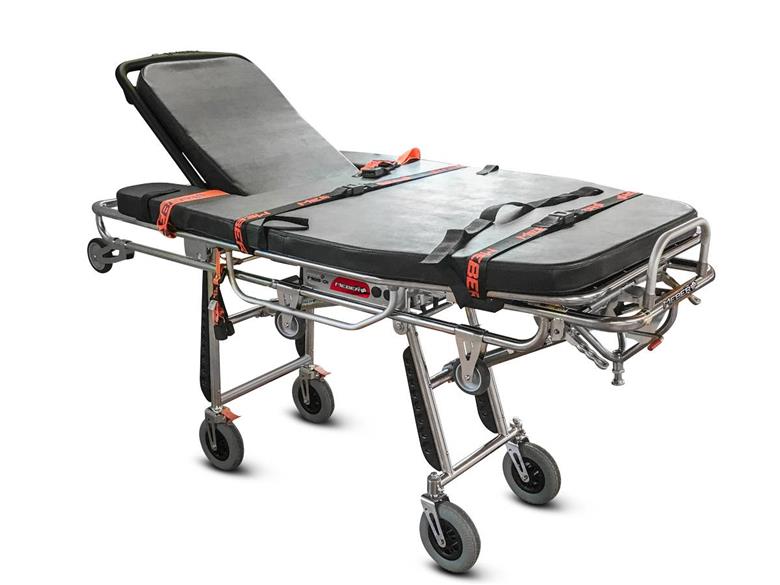

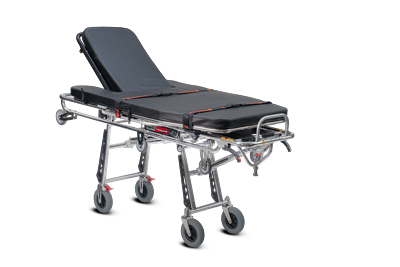

MBS-01 MEBER BARIATRIC STRETCHER 7270Self loading stretcher for bariatric transport |
 |
Description

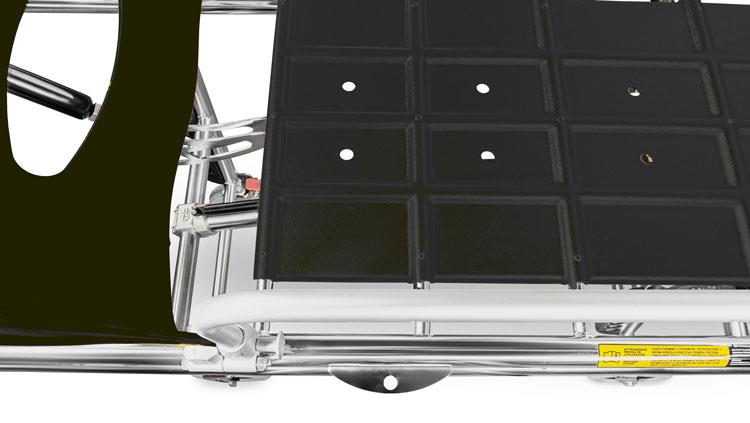

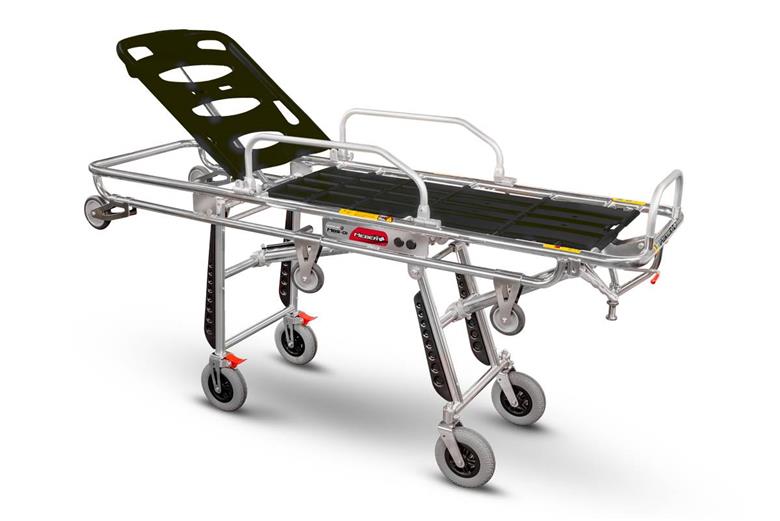

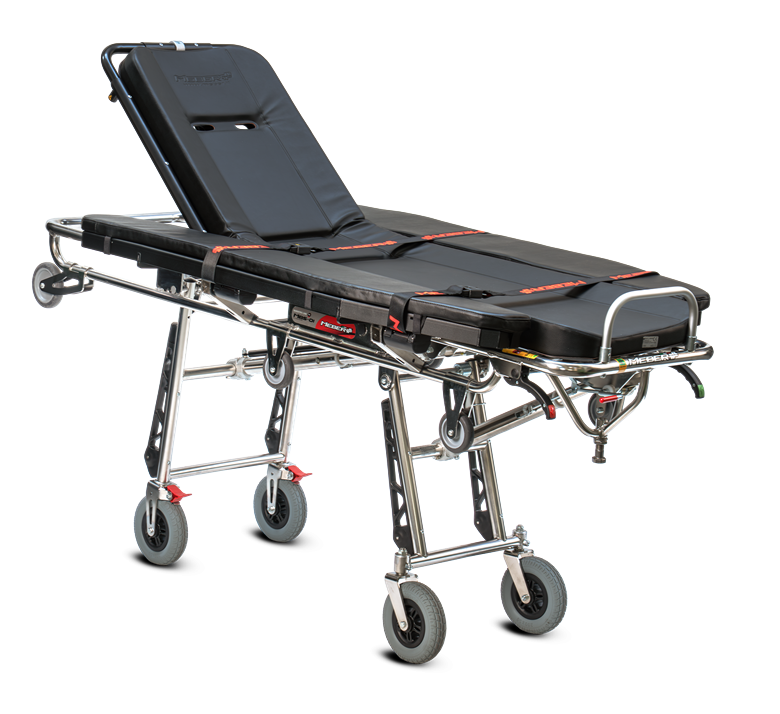

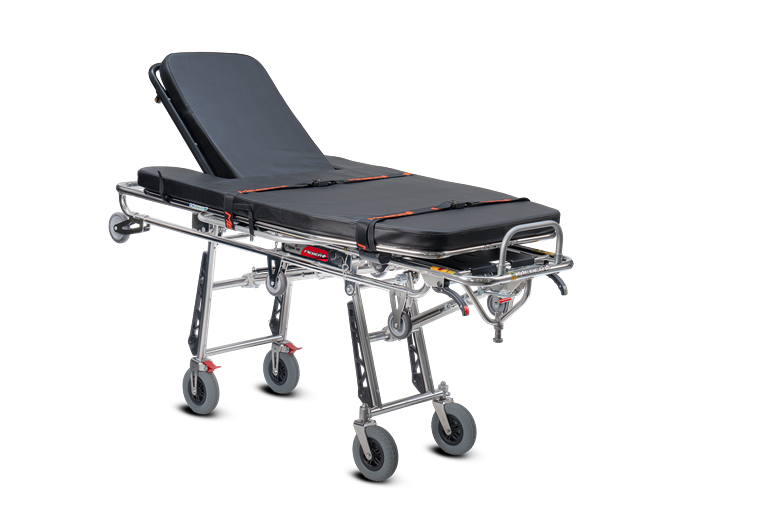

Self loading stretcher for bariatric transport made of a special high resistance stainless steal alloy. The frame is renforced to ensure a 350 kg maximum payload compared to others MeBer self loading stretchers. It is supplied with 2 frontal Ø125x25 and 2 back Ø125x25 wheels for maximum safety during loading operations. The increased 4 Ø200x50 mm wheels, 2 fixed with brake and 2 rotating with self-centring system, allow easy manoeuvrability even with heavy loads. The rigid platform, composed by reinforced thermoplastic material, is easy to clean and disinfect.
Description
Self loading stretcher for bariatric transport made of a special high resistance stainless steal alloy. The frame is renforced to ensure a 350 kg maximum payload compared to others MeBer self loading stretchers. It is supplied with 2 frontal Ø125x25 and 2 back Ø125x25 wheels for maximum safety during loading operations. The increased 4 Ø200x50 mm wheels, 2 fixed with brake and 2 rotating with self-centring system, allow easy manoeuvrability even with heavy loads. The rigid platform, composed by reinforced thermoplastic material, is easy to clean and disinfect.

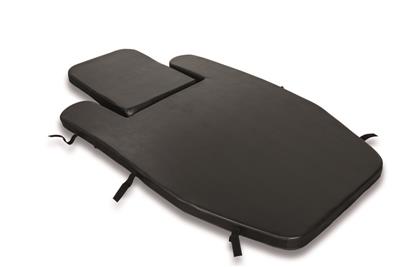

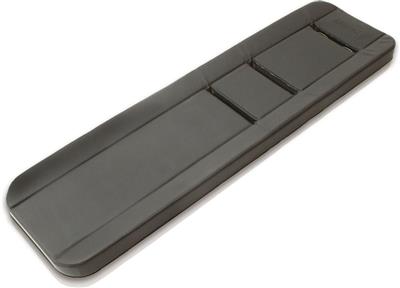

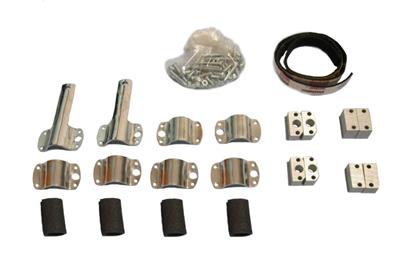

It also has an adjustable backrest with lockable gas spring for inclinations from 0° to 80° and fully folding sides. Vertical legs are protected by plastic buffers. This stretcher is supplied complete with mattress (art. 7013) and belts (N. 2 art. 608-A/MEB or 608-N/MEB and n. 1 art. 612/AN-2/MEB or art. 612/N-2/MEB).Thanks to the increased load capacity it can be used in coupling with the MBP bariatric platform (Article code 12080).
| Usage | Transport |
|---|---|
| Lying surface | Without Trendelenburg |
| Type | |
| Height (cm) | 92 |
| Width (cm) | 56 |
| Weight (kg) | 47,5 |
| Loading capacity (kg) | 350 |
| Folded height (cm) | 25 |
| Max loading height (cm) | 60 |
| Length (cm) | 197 |
| Material | Stainless steel |
| Bariatric |  |

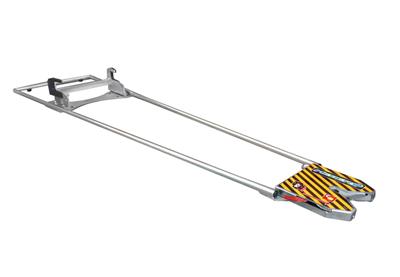

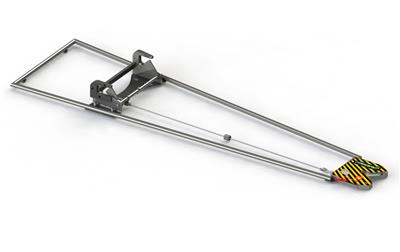

Certificazione EN 1789 - EN 1865 MBS-01+955+MTX-2
