19170

Double-space ambulance space cot support in aluminium, with reduced height, lateral movement, HERCULES system, 955 and 180 mm ramp with roller





Discover Request for quote
Art. 19170

19170

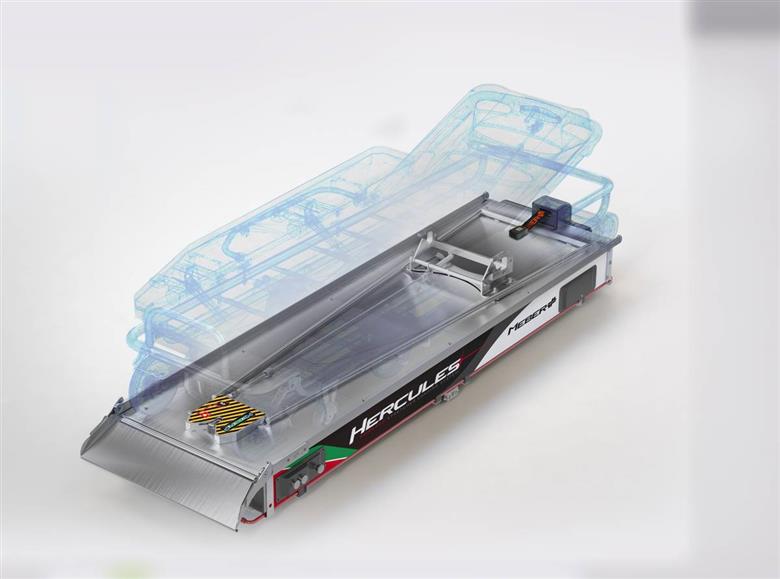

Double-space ambulance space cot support in aluminium, with reduced height, lateral movement, HERCULES system, 955 and 180 mm ramp with roller The HERCULES is the new ambulance cot support with motor-powered loading and unloading. The integrated position detectors and small pushbutton ensure a safe and easy use of this support. The loading takes place by means of a quick-release buckle system with belt, actioned by an integrated coaxial motor. No outer volume. Equipped with a double-safety system, to ensure total safety during loading and unloading). Can be installed on MTX-2R and MTX-2R-AL. 180 mm ramp and 955 fixing system. The underneath space may house both a scoop stretcher and a spinal board, despite the reduced height (-40 cm) compared to the MTX-2.
Certified EN1789.
30 cm lateral movement.

Main features

Bariatric
Length (cm) 216,5
Width (cm) 57,8
Weight (kg) 65
Loading capacity (kg) 400
Plate height 21
Total height 34

Accessories


19123
Art. 19123

Ribaltina 130 mm con attacchi per supporti e rullo


19115
Art. 19115

Ribaltina da 180 mm con attacchi per supporti e rullo
