Frog 7210 PROOF

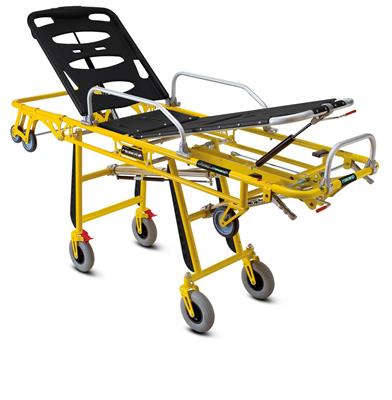

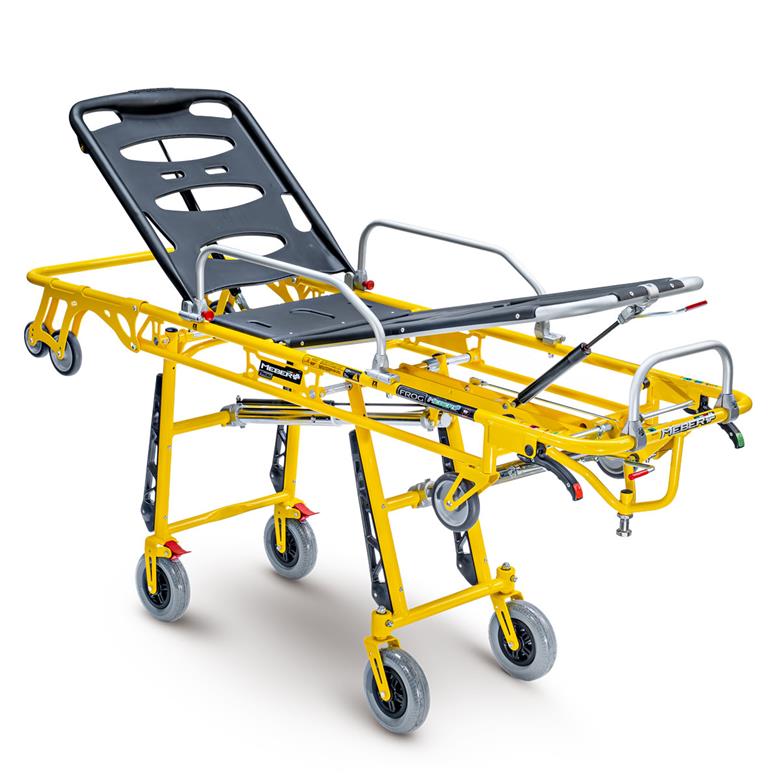

“FROG” yellow self loading stretcher with trendelenburg certified





Discover Request for quote
Art. 7210 PROOF

Frog 7210 PROOF

“FROG” yellow self loading stretcher with trendelenburg certified Made of welded stainless steel powder coated, this is a really strong and reliable device. The Ø 200 mm wheels (2 fixed with brake and 2 rotating with self-centring system) are made of soft material that allows high comfort level to the patient. This model of stretcher has trendelenburg position to 0° from 20° too.
• Rigid platform made of reinforced thermoplastic material. • Reclining backrest 0°- 80°, operated by a gas piston, can be locked in any position.
• Folding sides.
• Vertical legs protected by plastic buffers.
• Casters are self-centring so that the stretcher can be positioned in the ambulance without them having to be turned manually.
• Front trolley can be lowered to reduce overall dimensions of the stretcher.


In coupling with the proper fixation Art. 955 Proof, it is 10g resistant.

This stretcher is supplied complete with mattress (Art. 7013) and belts (nr. 2 Art. 608-A/MEB o 608-N/MEB and nr. 1 Art. 612/AN-2 o Art. 612/N-2).




Device certified according to the European harmonized  standards UNI EN 1865 - UNI EN 1789.

Main features

Size Adults
Usage Transport
10G Certification
Lying surface With Trendelenburg
Wheel type 2 Rotating Wheels + 2 Big Fixed Wheels
Type Self loading stretcher
Height (cm) 92
Max loading height (cm) 66
Min loading height (cm) 60
Folded height (cm) 32,5
Width (cm) 56
Length (cm) 195
Length with folded trolley (cm) 166
Weight (kg) 43
Loading capacity (kg) 250
Material Painted steel
Filter feature

See also


7265 Proof
Art. 7265 Proof

Aluminium self loading stretcher "Frog lite Advance" with exctractable handles and Trendelenburg


Frog Lite 7260 PROOF
Art. 7260 proof

“FROG LITE” self loading aluminium stretcher with trendelenburg certified


Frog 7210
Art. 7210

“FROG” yellow self loading stretcher with trendelenburg


Frog 7240 PROOF
Art. 7240 PROOF

“FROG PLUS” self loading stretcher with trendelenburg certified

Accessories


955 PROOF
Art. 955 PROOF

EN 1789 fixing system for Proof roll-in stretchers


936
Art. 936

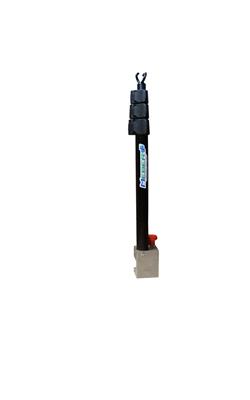

Phleboclysis stand for automatic loading stretcher Winner and Frog


939
Art. 939

Instrument support for stretchers


938
Art. 938

Oximeb oxygen cylinder holder


12025
Art. 12025

Black multi usage object holder for automatic loading stretcher


612-AN-2-MEB
Art. 612/AN-2/MEB

Adjustable thoracic abdominal belt orange/black with MeBer band and 4 points fastening for self loading stretchers and sedan chairs


612-N-2-MEB
Art. 612/N-2/MEB

Adjustable thoracic abdominal belt black with MeBer band with 4 points fastening for self loading stretchers and sedan chairs


608-A-MEB
Art. 608/A-MEB

2 pieces orange belt with metallic hook and MeBer band (L. 155 cm)


608-N-MEB
Art. 608/N-MEB

2 pieces black belt with metalic hook and MeBer band (L. 155 cm)


12084
Art. 12084

Bariatric wings set for self-loading stretchers complete with mattresses and belts with reel


7013-A
Art. 7013/A

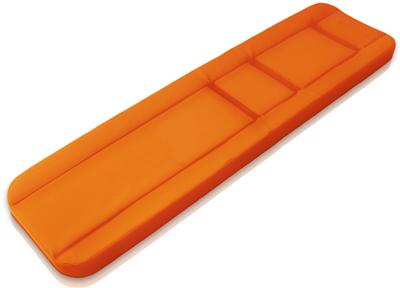

3 pcs. Skay fire-proof electrowelded mattress
