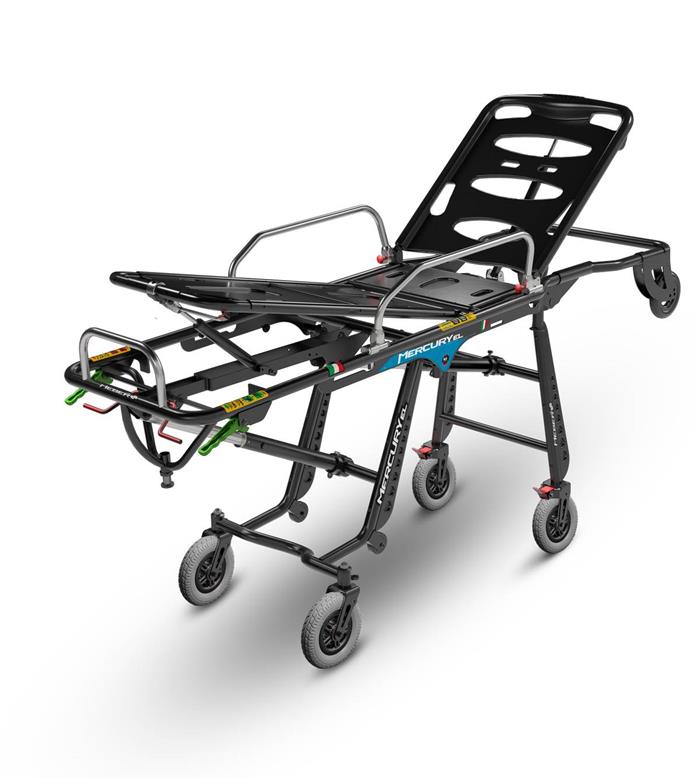

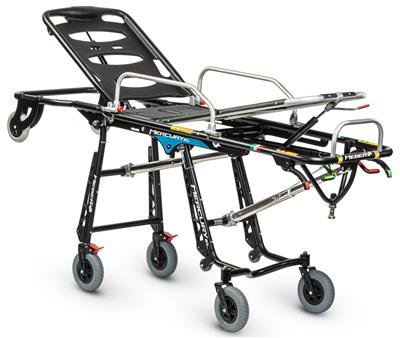

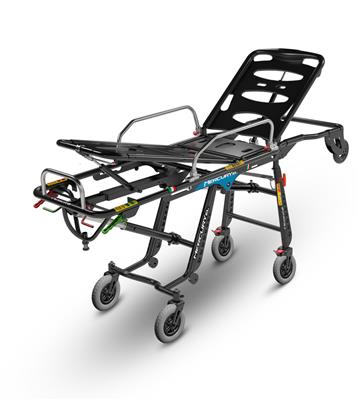

Mercury EL 7092/H3 PROOF

Certified self-loading stretcher with variable height

Mercury EL is the newest entry in Me.Ber’s range of ambulance cots. Sharing many features from other Mercury models, the EL is a naturally highly reliable and versatile cot. This model represents the entry level for the Mercury line.
Unlike most Mercury models, the EL does not feature a foldable front trolley nor 4 swivel castors and it’s not multilevel. However, this version serves as a perfect solution when a high standard of quality must be met while keeping things easy and accessible.

Safe-Frame Technology:

The frame of an ambulance cot must withstand intense mechanical stress: this is why Mercury features a single-piece frame, in line with Me.Ber.’s Same Frame building philosophy.
Thanks to this expedient, the structure of the cot is extremely safe and robust through time.


Device certified according to the European harmonized safety standards UNI EN 1865 - UNI EN 1789.



*All Pictures shown are for illustration purpose only.


Main features

Type
Size Adults
Usage Transport
10G Certification
Wheel type 2 Rotating Wheels + 2 Big Fixed Wheels
Lying surface With Trendelenburg
Max height (cm) 95
Max loading height (cm) 66
Min loading height (cm) 64
Folded height (cm) 31
Width (cm) 57
Length (cm) 197
Weight (kg) 41
Loading capacity (kg) 250
Material Painted steel
ABS
HDPE (High-density polyethylene)
Multilevel
Intermediate height (cm) 72
